Pedal + cleat fit check · two connected paths

Bike Pedal Replacement & Cleat System Checker

Match bike pedal cleats to the exact pedal family, release behavior and shoe mount—or route the job back to crank repair, pedal service or no purchase.

Match a pedal cleat ↓Repair or replace a pedal ↓

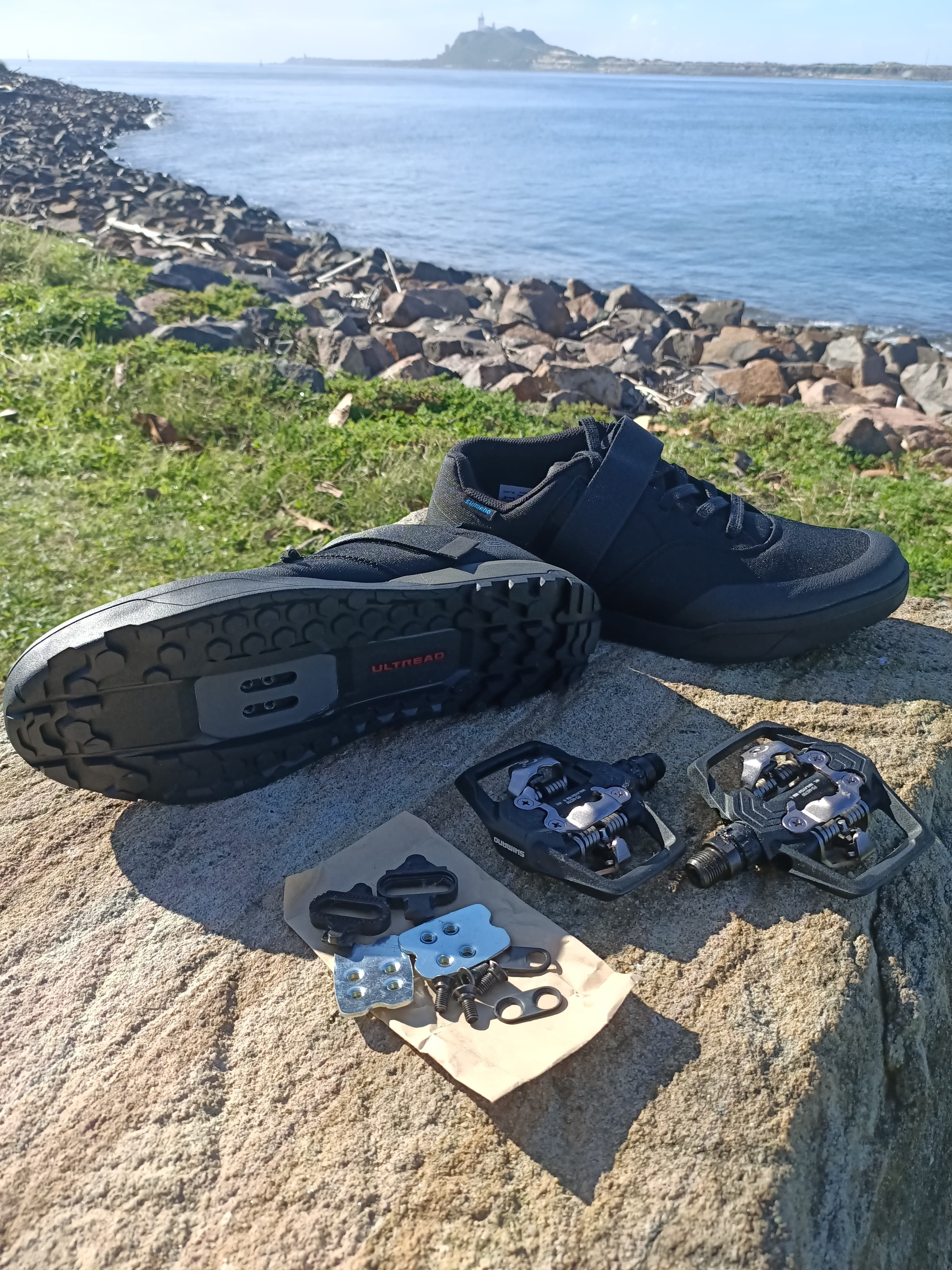

Shimano ME700 SPD pedals, matching SM-SH51 cleats, and GE500 mountain-bike shoes displayed together
Shimano ME700 SPD pedals, SM-SH51 cleats and GE500 shoes. Public-domain photo by JaredMcKenzie via Wikimedia Commons. Use it for visual identification—not as a fit or installation guide.

9-field pedal cleat compatibility check

Name the pedal. Name the cleat. Prove the shoe mount.

Bolt count is only one field. The matcher keeps Shimano SPD, SPD-SL, LOOK KEO, Crankbrothers, TIME ATAC, TIME ICLIC and current Speedplay records separate, stops release problems, and closes duplicate purchases.

1. Job, pedal family, and exact specifications
2. Cleat identity, shoe mount, and release boundary
3. Procedure, ownership, and exact option

All nine records are required. No name, email, bicycle serial, health detail or other personal field is collected or stored. This is not an installation, fit or release-test tool.

No result yet

A two-bolt shoe is not a universal cleat

01PedalExact maker, model and generation control.
02CleatFamily and release behavior stay attached.
03ShoeDrilling and any approved adapter must agree.
04NeedOwned matches and unsafe release states close shopping.

12-field repair-or-replace Check

Start at the crank thread. End at the product.

The checker can stop a damaged thread, preserve a serviceable pedal, separate flat and clip-in systems, route fit questions out, or show one exact current manufacturer details. It never teaches installation, invents a stance, sets release tension, ranks grip, or clears a bicycle for riding.

1. Safety, job, and crank responsibility
2. Thread, procedure, and current pedal
3. Pedal, shoe, cleat, and maker fit
4. Fit boundary, ownership, and option

All twelve records are required. Choose “no option” to produce only the handoff record. No name, email, bicycle serial, medical detail, or other personal field is collected or stored.

No result yet

The pedal is the last decision, not the first

01RetainA loose pedal or damaged crank thread stops shopping.
02RepairMaker service parts can make a new pair unnecessary.
03SystemFlat, SPD, Crankbrothers, hybrid, and power are not interchangeable.
04SourceOnly an exact size, thread, shoe/cleat, and current variant can show.

Decision rail

The workflow is intentionally biased toward keeping sound equipment and closing unsafe paths.

Four decisions a cleat grid cannot make

01

Retain

A loose pedal, pulled thread, or cracked crank routes to assessment before a new part.

02

Repair

A known pedal with maker refresh parts can close the purchase path.

03

Cleat

SPD, SPD-SL, search checkO, Crankbrothers, ATAC, ICLIC and Speedplay do not inherit one shoe or release answer.

04

Source

Pedal model, cleat identity, shoe mount, release, ownership and the exact option must all agree.

Hard stop

A replacement pedal is not a thread repair

A pedal that loosens or falls off, a pulled or cross-threaded crank, a cracked crank, or a damaged spindle closes the shopping path.

Do not install another pedal to see whether it holds. Establish whether the crank, spindle, both threads, and any source-approved repair route are serviceable.

Broken bodies, binding spindles, missing retention, uncontrolled clip release, and unknown power-pedal electronics route to exact service evidence.

This page does not teach removal, installation direction, grease, washers, torque, cleat positioning, tension, bearing service, or test riding.

If retention, control, structure, or release may be unsafe, stop riding and use the exact current crank/pedal instructions or a qualified service path. The utility organizes decision evidence; it cannot inspect or clear the bicycle.

Live source conflict

The utility records disagreement instead of silently choosing the field that helps a sale.

The maker says composite. The seller says aluminum.

Maker construction source

Stamp 1 Gen 2 Large

Crankbrothers identifies a composite body, 114 × 111 mm footprint, serviceable bearing/seal system, US M 10–15 / EU 43.5–49 maker band, SKU 16809, and $64.99 price.

seller observation

Same named family and variant

Performance supplies the 9/16-inch spindle, S/L selector, $64.99 price and availability control—but labels the platform material aluminum. The conflict remains visible; the current maker controls construction.

This is why a source Check adds value. A product card can be current and still contain a conflicting attribute. The checker shows a comparison record, not a claim that every seller field is correct.

Use the manufacturer specifications

A source owns only its product, interface and current published fields. One system never becomes a universal rule.

Nine bounded records behind both Checks

Exact cleat manufacturer specifications

Shimano SM-SH51 / ISMSH51 ↗

Exact current replacement part identity; the checker keeps its lateral-release record separate from SH56 multi-release.

Road-system boundary

LOOK search checkO Grip ↗

Current search checkO-only interface plus its 0°, 4.5° and 9° records; not SPD, SPD-SL or another three-bolt system.

TIME family boundary

TIME pedal buyer guide ↗

Separates two-bolt ATAC from three-bolt ICLIC and preserves their exact release records.

Flat manufacturer specifications · Small

Crankbrothers Stamp 1 Gen 2 Small ↗

Composite body, 100 × 100 mm footprint, maker size band, serviceability, and exact current specifications.

Next safe path

Keep the pedal job connected to the crank and tool system

The replacement decision can expose a crank-thread failure, a serviceable pedal, or a tool gap. Use the next route only for that exact job.

Match the exact pedal tool interfaceRoute crank damage and replacementAudit the tool gap by jobReturn to the maintenance board
